Description

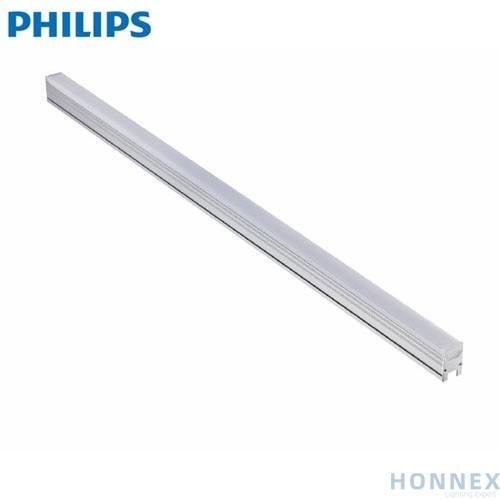

PHILIPS BCS341 60LED 27K 24V OC L100 10PX 911401779102
BCS341 60LED 27K 24V OC L100 10PX
UniBar is a surface mounted, exterior-rated and slim sized linear LED direct view
luminaire that is designed for façade and outdoor architectural lighting applications.;
The robust mechanical and unique optical design make it ideal for buildings facades,
media facades, bridges, overpasses and any application that requires a slim linear direct
view lighting solution.;Direct view spread lens, through wiring for end-to-end connection
and DMX control option available with up to 10 pixels (10IDs) to give architects and designers
the freedom to explore a wide range of concepts and design with no limitations.;Available in
white, monochromatic colors, RGB, RGBW and tunable white.
Product data
Overall length: 1000 mm
Overall width: 35 mm
Overall height: 65 mm
Color: Silver
Ingress protection code: IP66
Mech. impact protection code: IK08
Ambient temperature range: -40 to +50 °C
Initial LED luminaire efficacy: 48 lm/W
Net Weight (Piece): 0.886 kg
Remarks
PHILIPS BCS341 :
PHILIPS BCS341 60LED 27K 24V OC L100 10PX 911401779102
PHILIPS BCS341 60LED 27K 24V OC L100 911401779112
PHILIPS BCS341 60LED 30K 24V OC L100 10PX 911401779122
PHILIPS BCS341 60LED 30K 24V OC L100 911401779132
PHILIPS BCS341 60LED 40K 24V OC L100 10PX 911401779142
PHILIPS BCS341 60LED 40K 24V OC L100 911401779152
PHILIPS BCS341 60LED RGB 24V OC L100 10PX 911401779162
PHILIPS BCS341 120LED RGBWW 24V OC L100 10PX 911401779172
PHILIPS BCS341 120LED RGBNW 24V OC L100 10PX 911401779182
PHILIPS BCS341 30LED 27K 24V OC L50 5PX 911401779192
PHILIPS BCS341 30LED 27K 24V OC L50 911401779202
PHILIPS BCS341 30LED 30K 24V OC L50 5PX 911401779212
PHILIPS BCS341 30LED 30K 24V OC L50 911401779222
PHILIPS BCS341 30LED 40K 24V OC L50 5PX 911401779232
PHILIPS BCS341 30LED 40K 24V OC L50 911401779242
PHILIPS BCS341 30LED RGB 24V OC L50 5PX 911401779252
PHILIPS BCS341 60LED RGBWW 24V OC L50 5PX 911401779262
PHILIPS BCS341 60LED RGBNW 24V OC L50 5PX 911401779272
PHILIPS BCS341 18LED 27K 24V OC L30 3PX 911401779282
PHILIPS BCS341 18LED 27K 24V OC L30 911401779292
PHILIPS BCS341 18LED 30K 24V OC L30 3PX 911401779302
PHILIPS BCS341 18LED 30K 24V OC L30 911401779312
PHILIPS BCS341 18LED 40K 24V OC L30 3PX 911401779322
PHILIPS BCS341 18LED 40K 24V OC L30 911401779332
PHILIPS BCS341 18LED RGB 24V OC L30 3PX 911401779342
PHILIPS BCS341 36LED RGBWW 24V OC L30 3PX 911401779352
PHILIPS BCS341 36LED RGBNW 24V OC L30 3PX 911401779362
